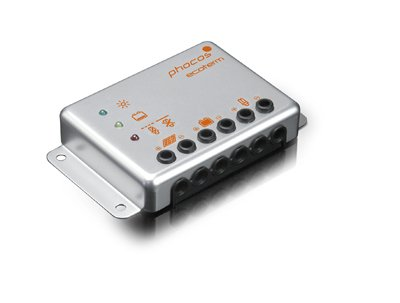

Phocos EcoTherm 14A PWM Solar Charge Controller

German-engineered 12V PWM solar charge controller for lead-acid batteries — compact, rugged and built for demanding mobile solar applications.

The Phocos EcoTherm 14A PWM Solar Charge Controller is a compact, highly durable solar regulator designed for 12V lead-acid battery systems.

German-engineered by Phocos, the EcoTherm is designed for reliable operation in demanding outdoor and mobile environments, with a wide operating temperature range of -40°C to +60°C and an IP68-rated casing.

With a 14A maximum charge/load current, temperature-compensated charging and integrated battery protection, it provides a simple and dependable solution for 12V solar charging.

It is particularly well suited to the Flexopower FlexoSun 165W solar panel when used with a compatible 12V lead-acid battery system.

Why Choose the Phocos EcoTherm 14A?

The EcoTherm uses PWM (Pulse Width Modulation) charging technology, providing a straightforward and cost-effective solution for appropriately matched 12V solar and lead-acid battery systems.

It is ideal where simplicity, compact dimensions and rugged environmental protection are more important than the additional energy-harvesting capability of an MPPT controller.

For systems requiring higher-voltage solar input, greater PV capacity or maximum solar energy harvesting, consider the FlexoTrack 30A / 100V MPPT Solar Charge Controller.

Key Features

• 14A maximum charge/load current
• 12V system voltage
• PWM solar charging technology
• Designed for lead-acid batteries
• Compatible with GEL, AGM and flooded lead-acid batteries
• IP68-rated casing for high protection against dust and water ingress
• IP21-rated electrical contacts
• Built-in deep-discharge protection
• Overvoltage and undervoltage protection
• Temperature-compensated charging
• -40°C to +60°C operating temperature range
• Compact and lightweight design
• German-engineered
• RoHS compliant
• 2-year product warranty

Ideal for the Flexopower FlexoSun 165W

The Phocos EcoTherm 14A is an excellent choice for use with the Flexopower FlexoSun 165W solar panel in a compatible 12V lead-acid battery system. The combination provides a compact and practical solar charging solution for camping, caravanning, 4x4 vehicles, remote installations and other mobile applications.

Battery Compatibility

The EcoTherm 14A is designed specifically for 12V lead-acid battery systems, including GEL, AGM and Flooded lead-acid.

Important: The EcoTherm 14A is not designed for LiFePO4 batteries. For lithium battery systems, use a solar charge controller specifically configured and approved for LiFePO4 charging, such as a suitable Flexopower MPPT controller.

Charging & Battery Protection

• Float charge: 13.8V at 25°C
• Main charge: 14.4V at 25°C, 0.5 hours daily
• Boost charge: 14.4V at 25°C, 2 hours
• Battery activation: below 12.3V
• Deep-discharge protection: 11.0V
• Undervoltage protection: 10.5V
• Overvoltage protection: 15.5V
• Temperature compensation: -4.2mV/K per 2V cell

Installation Notes

1. Use only with a 12V lead-acid battery system.
2. Ensure the solar panel's maximum open-circuit voltage (Voc) does not exceed 30V.
3. Connect the battery and solar panel according to the manufacturer's installation instructions.
4. Use appropriately sized cables and suitable system protection.
5. Ensure the controller is installed in accordance with the manufacturer's environmental and mounting requirements.

Important: The IP68 protection rating applies to the controller casing. The electrical contacts are rated IP21.

Why Phocos?

Phocos is a German solar technology company specialising in charge controllers and off-grid energy management. The EcoTherm 14A combines that engineering expertise with a compact, rugged and highly weather-resistant design, making it particularly well suited to mobile and remote solar applications.

12V | 14A | PWM | Lead-acid | FlexoSun 165W compatible | IP68 casing | -40°C to +60°C | 160g | 2-year warranty

Simple. Rugged. Reliable solar charging for 12V lead-acid systems.
