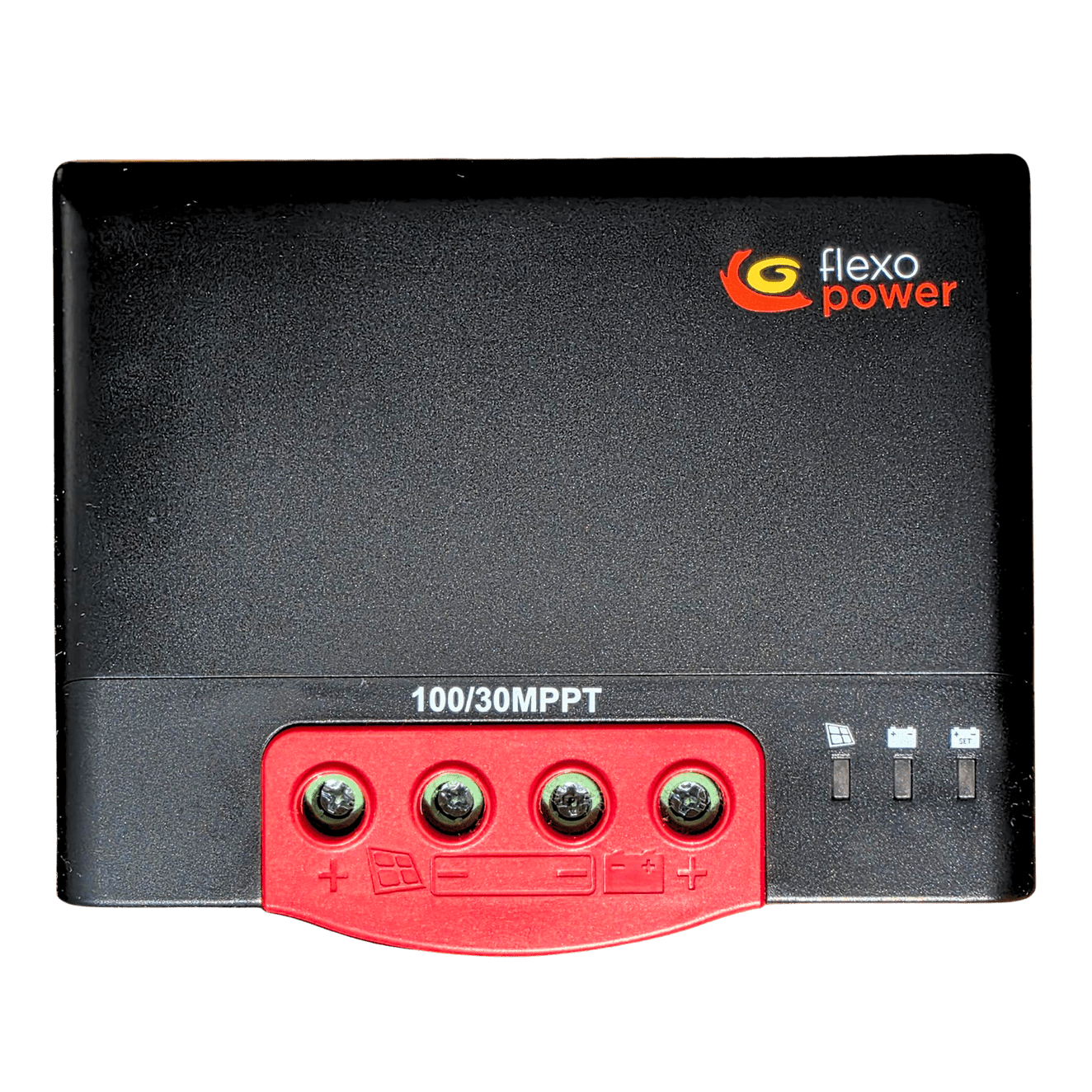

Flexopower FlexoTrack 30A MPPT Solar Charge Controller
Flexopower 30A / 100V MPPT Solar Charge Controller
Smart, Efficient Solar Charging for Off-Grid Power
The Flexopower 30A / 100V MPPT Solar Charge Controller delivers high-efficiency solar charging in a compact, reliable design. This controller ensures maximum energy harvest and safe battery management for your off-grid setup.
Perfect for camping, overlanding, caravans, and backup power systems.
Key Features
Advanced MPPT Technology
Up to 99,5% tracking efficiency for maximum solar harvestWide PV Input Range (100V)
Supports higher-voltage panels → more flexible system design30A Charging Current
Ideal for medium-sized battery systemsAutomatic 12V / 24V Detection
Plug-and-play setupMulti-Battery Support
Compatible with:
LiFePO4
AGM
Gel
Flooded batteries
High Conversion Efficiency
Up to 99.5% efficiencyBuilt-in Protection
Overcharge, over-discharge, short circuit, reverse polarityCompact & Rugged Design
Designed for mobile and outdoor use
Technical Specifications
| Specification | Details |
|---|---|
| Model | Flexopower 30/100 MPPT |
| Rated Charge Current | 30A |
| System Voltage | 12V / 24V Auto |
| Max PV Input Voltage | 100V DC |
| MPPT Tracking Efficiency | ≥ 99,5% |
| Max Conversion Efficiency | ≥ 98% |
| Battery Types | LiFePO4 / AGM / Gel / Flooded |
| Max PV Power (12V system) | 400W |
| Max PV Power (24V system) | 800W |
| Self Consumption | ≤ 10mA |
| Operating Temperature | -20°C to +50°C |
| Protection | Overcharge, short circuit, reverse polarity, overheating |
| Communication | Optional (RS485 / Bluetooth depending on configuration) |
| Dimensions | 150 x 106 x 68mm |
| Weight | 0.83kg |

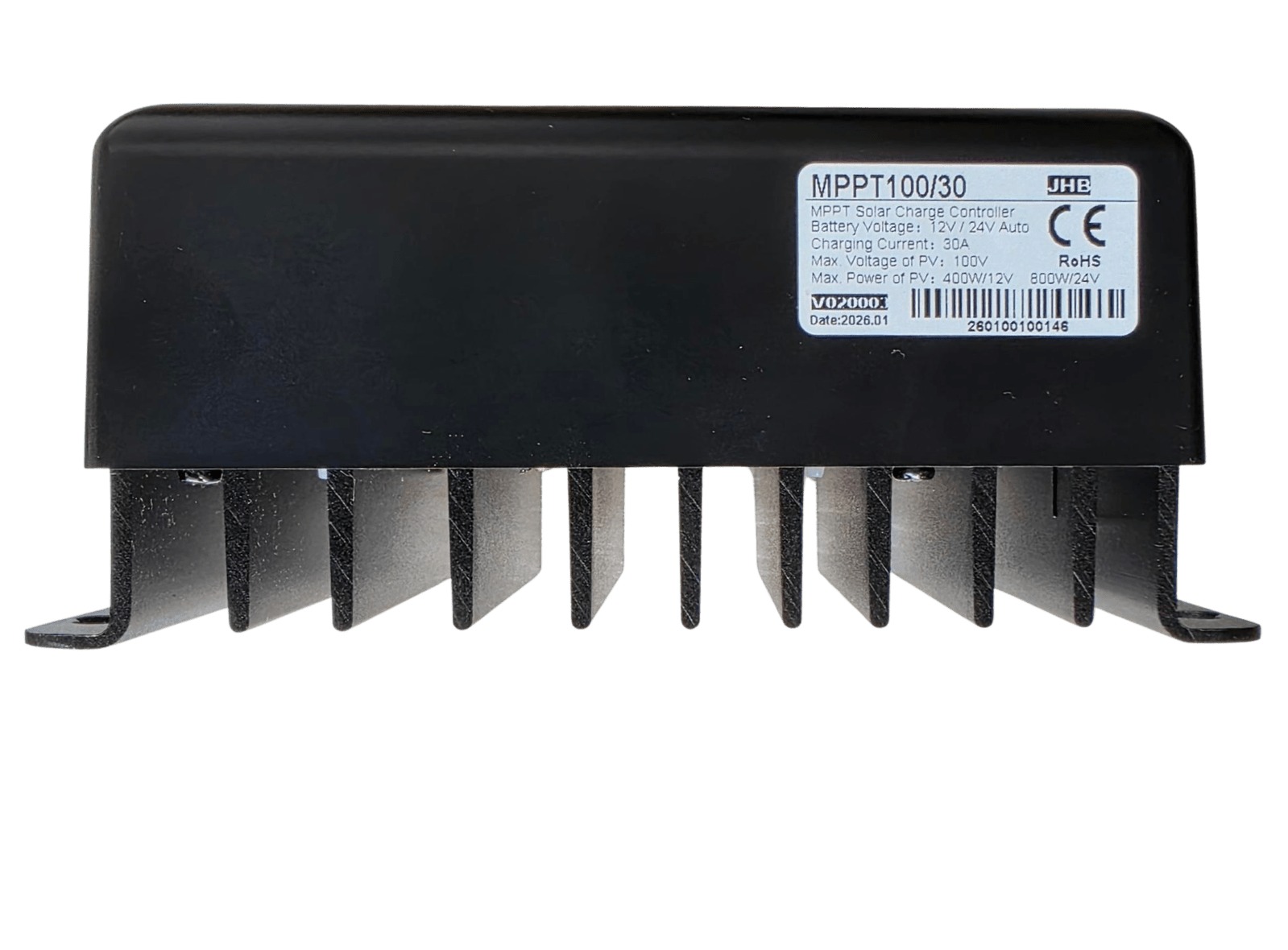

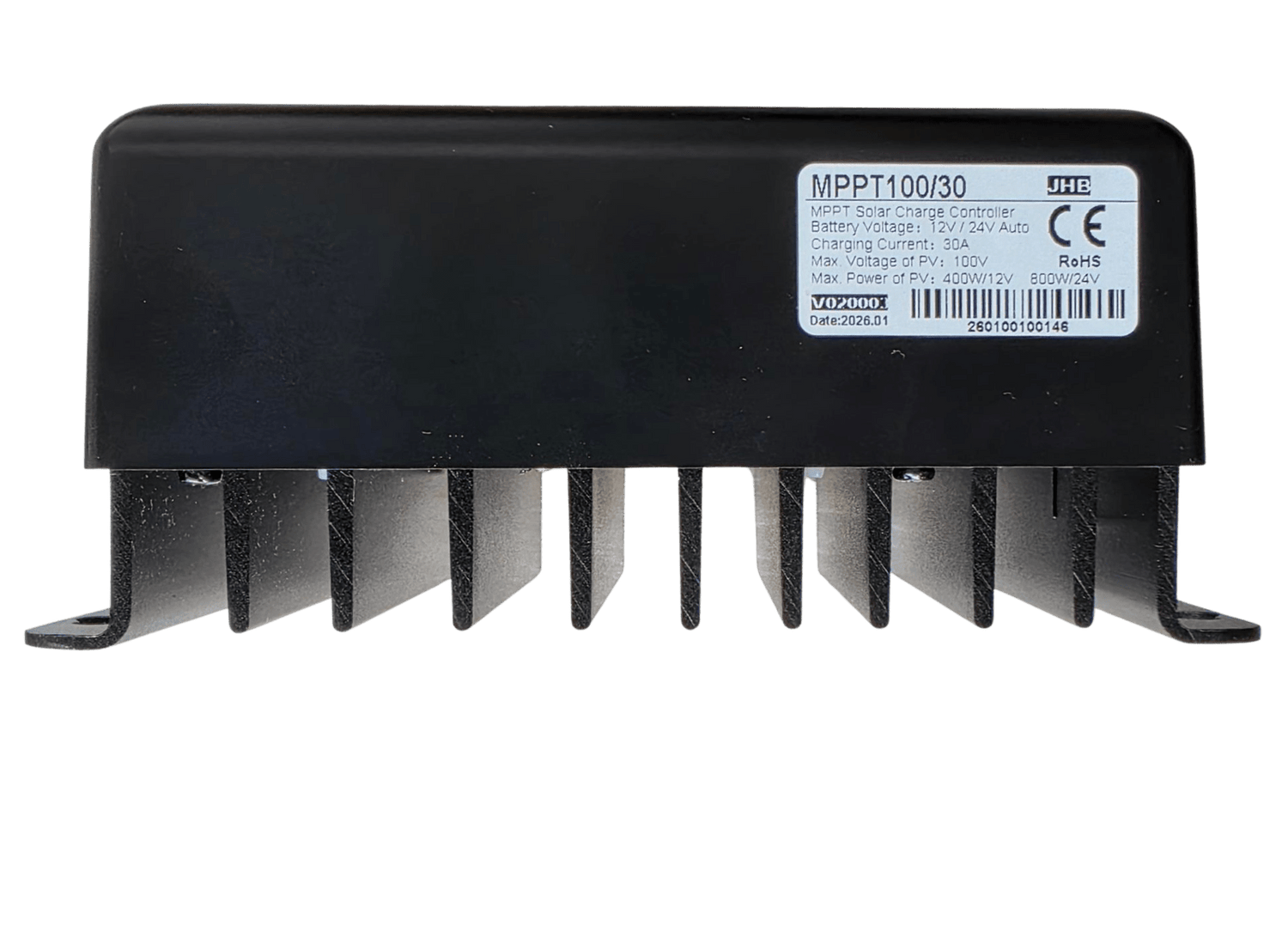

| Cooling | Natural convection |
| Warranty | 3 years |
What’s in the Box
-
Flexopower 30/100 MPPT Controller
-
User Manual
Ideal Applications
-
Overlanding & 4x4 systems
-
Camping setups
-
Trailer & caravan solar
-
Small off-grid systems
Why Choose Flexopower?
-
Trusted local brand
-
Optimised for mobile power applications
-
Backed by real-world off-grid experience
Installation Notes
-
Always connect battery first, then solar
-
Ensure PV voltage does not exceed 100V
-
Use correct cable sizing and fusing
