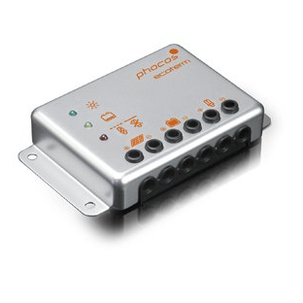

14A IP68 Ecoterm Solar Regulator by Phocos

The Ecoterm 14A is a modern PWM solar regulator for lead acid batteries.

IP68 rated and a perfect solution for the Namib solar panels. German engineered. 2 years product warranty. RoHS compliant.

- System voltage 12 V
- Max. charge/load current 14 A
- Float charge 13.8 V (25°C)
- Main charge 14.4 V (25°C), 0.5 h (daily)
- Boost charge 14.4 V (25°C), 2 h
- Activation: battery voltage < 12.3 V
- Deep discharge protection 11.0 V
- Cut-off voltage
- Overvoltage protection 15.5 V
- Undervoltage protection 10.5 V
- Max. PV panel voltage 30 Voc
- Temperature compensation -4.2 mV/K (2 V cell)
- Idle self consumption 4 mA
- Grounding Positive grounded
- Operating temperature range -40°C to +60°C
- Max. operating altitude 4.000m above sea level
- Battery type Lead acid (GEL, AGM, flooded)
- Max. wire cross section 10mm²

-  Dimensions (W x H x D) 100 x 61 x 20mm
- Weight 160g
- Type of protection IP68 (casing), IP21 (contacts)
